{     "ZStackTemplateFormatVersion": "2018-06-18",     "Description": "Creates Vxlan VPC network. This template creates a VPC network. Make sure that the public network and management network are working as expected. Note that the VXLAN VTEP CIDR is required.",     "Parameters": {         "VrouterImageUrl": {             "Type": "String",             "Label":"Vrouter image",             "Description":"vRtouter image URL",             "DefaultValue": "http://cdn.zstack.io/product_downloads/vrouter/3.8.4/r5ed93wpjf/zstack-vrouter-3.8.4.qcow2"         },         "VmImageUrl": {             "Type": "String",             "Label": "VM image url",             "Description":"VM image url",             "DefaultValue": "http://cdn.zstack.io/zstack_repo/latest/zstack-image-1.4.qcow2"         },         "BackupStorage":{             "Type": "CommaDelimitedList",             "Label": "BackupStorage UUID",             "Description":"BackStorage UUID"         },         "ManagementNetworkUuid":{             "Type": "String",             "Label": "Management network",             "Description":"You can use public network as management network"         },         "PublicNetworkUuid":{             "Type": "String",             "Label": "Public network",             "Description":"Public network UUID"         },         "ZoneUuid":{             "Type": "String",             "Label": "Zone",             "Description":"Zone UUID"         },         "ClusterUuid":{             "Type": "String",             "Label": "Cluster",             "Description":"Cluster UUID"         },         "Cidr":{             "Type": "String",             "Description":"VTEP CIDR. Use the correct CIDR",             "DefaultValue":"{10.0.0.0/8}"         },         "Vni":{             "Type": "Number",             "DefaultValue":222         },         "StartVni":{             "Type": "Number",             "DefaultValue":100         },         "EndVni":{             "Type": "Number",             "DefaultValue":300         },         "StartIp":{             "Type": "String",             "DefaultValue":"192.168.20.2"         },         "EndIp":{             "Type": "String",             "DefaultValue":"192.168.20.200"         },         "Netmask":{             "Type": "String",             "DefaultValue":"255.255.255.0"         },         "Gateway":{             "Type": "String",             "DefaultValue":"192.168.20.1"         }     },     "Resources": {         "VrouterImage": {             "Type": "ZStack::Resource::Image",             "Properties": {                 "name": {"Fn::Join":["-",[{"Ref":"ZStack::StackName"}, {"Ref":"ZStack::StackUuid"},{"Ref":"ZStack::AccountUuid"},{"Ref":"ZStack::AccountName"},"Vrouter-Image"]]},                 "url": {"Ref":"VrouterImageUrl"},                 "system": true,                 "format": "qcow2",                 "backupStorageUuids":{"Ref":"BackupStorage"}             }         },         "VMImage": {             "Type": "ZStack::Resource::Image",             "Properties": {                 "name": {"Fn::Join":["-",[{"Ref":"ZStack::StackName"}, "VmImage"]]},                 "url": {"Ref":"VmImageUrl"},                 "format": "qcow2",                 "backupStorageUuids":{"Ref":"BackupStorage"}             }         },         "VirtualRouterOffering":{             "Type":"ZStack::Resource::VirtualRouterOffering",             "Properties":{                 "name": {"Fn::Join":["-",[{"Ref":"ZStack::StackName"}, "Vrouter-Offering"]]},                 "zoneUuid":{"Ref":"ZoneUuid"},                 "managementNetworkUuid":{"Ref":"ManagementNetworkUuid"},                 "publicNetworkUuid":{"Ref":"PublicNetworkUuid"},                 "imageUuid":{"Fn::GetAtt":["VrouterImage", "uuid"]},                 "cpuNum":2,                 "memorySize":2147483648             }         },         "VpcVRouter":{             "Type":"ZStack::Resource::VpcVRouter",             "Properties":{                 "name": {"Fn::Join":["-",[{"Ref":"ZStack::StackName"}, "VPC-Router"]]},                 "virtualRouterOfferingUuid":{"Fn::GetAtt":["VirtualRouterOffering","uuid"]}             }         },         "L2VxlanNetworkPool":{             "Type":"ZStack::Resource::L2VxlanNetworkPool",             "Properties":{                 "name": {"Fn::Join":["-",[{"Ref":"ZStack::StackName"}, "L2VxlanNetworkPool"]]},                 "zoneUuid":{"Ref":"ZoneUuid"}             }         },         "VniRange":{             "Type":"ZStack::Resource::VniRange",             "Properties":{                 "name": {"Fn::Join":["-",[{"Ref":"ZStack::StackName"}, "VniRange"]]},                 "startVni":{"Ref":"StartVni"},                 "endVni":{"Ref":"EndVni"},                 "l2NetworkUuid":{"Fn::GetAtt":["L2VxlanNetworkPool","uuid"]}             }         },         "L2VxlanNetwork":{             "Type":"ZStack::Resource::L2VxlanNetwork",             "Properties":{                 "name": {"Fn::Join":["-",[{"Ref":"ZStack::StackName"}, "L2VxlanNetwork"]]},                 "poolUuid":{"Fn::GetAtt":["L2VxlanNetworkPool","uuid"]},                 "zoneUuid":{"Ref":"ZoneUuid"},                 "vni":{"Ref":"Vni"}             }         },         "VpcL3Network":{             "Type":"ZStack::Resource::L3Network",             "Properties":{                 "name": {"Fn::Join":["-",[{"Ref":"ZStack::StackName"}, "VPC-Network"]]},                 "l2NetworkUuid":{"Fn::GetAtt":["L2VxlanNetwork","uuid"]},                 "category":"Private",                 "type":"L3VpcNetwork",                 "systemTags":["networkservices::VRouter"]             }         },         "AttachL3ToVm":{             "Type":"ZStack::Action::AttachL3NetworkToVm",             "Properties":{                 "vmInstanceUuid": {"Fn::GetAtt":["VpcVRouter","uuid"]},                 "l3NetworkUuid":{"Fn::GetAtt":["VpcL3Network","uuid"]}             },             "DependsOn":[{"Ref":"AddIpRange"}]         },         "AddIpRange" :{             "Type":"ZStack::Action::AddIpRange",             "Properties":{                 "name": {"Fn::Join":["-",[{"Ref":"ZStack::StackName"}, "iprange"]]},                 "l3NetworkUuid":{"Fn::GetAtt":["VpcL3Network","uuid"]},                 "startIp":{"Ref":"StartIp"},                 "endIp":{"Ref":"EndIp"},                 "netmask":{"Ref":"Netmask"},                 "gateway":{"Ref":"Gateway"}             }         },         "AttachL2NetworkToCluster":{             "Type":"ZStack::Action::AttachL2NetworkToCluster",             "Properties":{                 "l2NetworkUuid":{"Fn::GetAtt":["L2VxlanNetworkPool","uuid"]},                 "clusterUuid":{"Ref":"ClusterUuid"},                 "systemTags":[{"Fn::Join":["::",["l2NetworkUuid",{"Fn::GetAtt":["L2VxlanNetwork","uuid"]},"clusterUuid",{"Ref":"ClusterUuid"},"cidr",{"Ref":"Cidr"}]]}]             }         },         "TestVm":{             "Type":"ZStack::Resource::VmInstance",             "Properties":{                 "name": {"Fn::Join":["-",[{"Ref":"ZStack::StackName"}, "TestVm"]]},                 "cpuNum": 1,                 "memorySize": 1073741824,                 "l3NetworkUuids": [{"Fn::GetAtt":["VpcL3Network","uuid"]}],                 "imageUuid": {"Fn::GetAtt":["VMImage", "uuid"]}             },             "DependsOn":[{"Ref":"AttachL3ToVm"}]         }     },     "Outputs": {         "vpc": {             "Value": {                 "Ref": "VpcL3Network"             }         }     } }

• "ZStackTemplateFormatVersion": "2018-06-18"

  定义模板版本。

• "Description": "Creates Vxlan VPC network. This template creates a VPC network. Make sure that the public network and management network are working as expected. Note that the VXLAN VTEP CIDR is required."

  定义对模板的解释说明。

• "Parameters": { }

  定义模板的参数列表。

  本例中定义了以下参数：

  • 路由器镜像URL
  • 云主机镜像URL
  • 镜像服务器
  • 管理网络
  • 公有网络
  • 区域
  • 集群
  • VTEP CIDR
  • VNI、起始VNI、结束VNI
  • 起始IP、结束IP、子网掩码、网关
• "Resources": { }

  定义该模板将要创建的资源。

  本例中声明将要创建以下资源：

  • 添加一个路由器镜像
  • 添加一个云主机镜像
  • 创建一个路由器规格
  • 创建一个VPC路由器
  • 创建VXLAN网络池
  • 指定VNI范围
  • 创建一个二层VXLAN网络
  • 创建一个VPC网络
  • 挂载VPC网络到云主机
  • 配置VPC网络的IP范围
  • 挂载二层网络到集群
  • 创建一个计算规格
  • 创建一个云主机

  这里声明的资源属性可以引用"Parameters": { }中定义的参数。
• "Outputs": { }

  定义资源创建完成后，通过资源栈输出资源属性等有用信息。

• 区域：自动显示当前区域
• 名称：设置资源栈名称
• 简介：可选项，可留空不填
• 超时设置：设置创建资源栈的超时时限，超时将失败，默认为60分钟
• 失败回滚：设置创建失败是否清理已创建的资源，默认开启
• 创建方式：选择创建资源栈方式，本章节以创建LNMP为例。支持以下三种方式：
  • 资源栈模板：使用系统模板或自定义模板创建资源栈
    说明: 如何创建自定义模板，请参考资源栈模板章节。
  • 上传文件：使用已定义的UTF8编码格式模板文件创建资源栈
    说明: 关于模板语法的详细介绍，请参考资源栈模板语法章节。

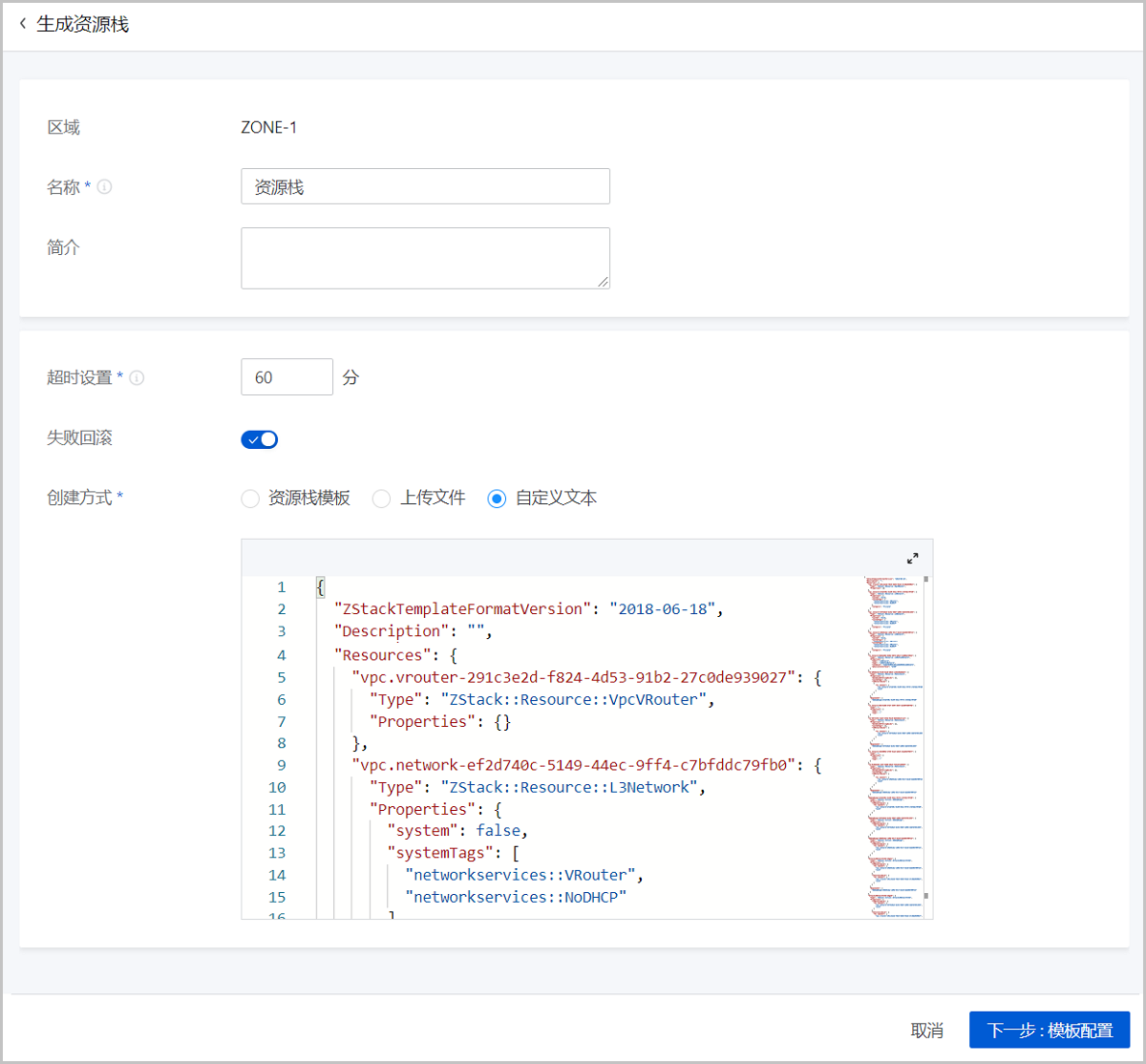

  • 自定义文本：在文件编辑器中编辑模板创建资源栈
    说明: 关于模板语法的详细介绍，请参考资源栈模板语法章节。
